H-Frame

An H-Frame is a type of scaffolding frame used in construction and maintenance work. It’s named for its shape, which resembles the letter “H.” The H-frame provides a stable and rigid structure for supporting platforms, access ways, or work areas.

Key Components:

Vertical Standards: Two vertical posts that form the sides of the "H." These are typically made of steel and provide the primary support.

Horizontal Braces: Two horizontal members at the top and bottom of the frame that connect the vertical posts, forming the crossbars of the "H."

Diagonal Braces: Diagonal members may be added for additional stability, helping to prevent swaying or shifting.

Base Plates or Wheels: Base plates are often used to provide stability on the ground, or wheels may be included for mobility.

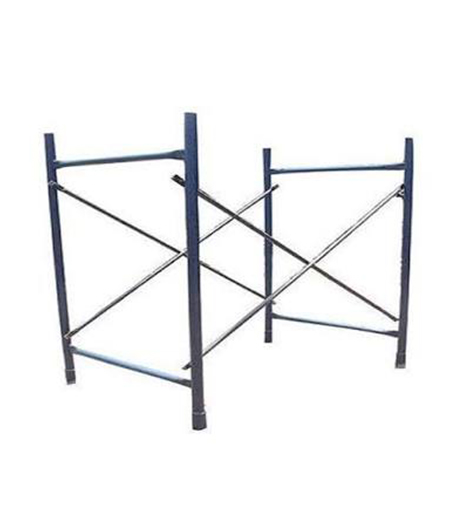

H-Frame

Price: Rs---/kg

Minimum order Quantity 100 kg

Shape: H-type

Size: 2*1 meters (or) any customized size

Brace: 9 feet L-angle

Material: NB40 round pipe
H-Frame: 3.2 mm thickness
Brace: 32*32*5 mm L-angle

Weight: 55 kgs / set

Set Includes: 2 H-frames & 2 X-bracings

Color : Blue

Ladder type H-frame

Price: Rs---/kg

Minimum order Quantity 100 kg

Shape: H-frame

Size: 2*1 meters (or) any customized size

Brace: 9 feet

Material: NB40 round pipe
H-frame: 3.2 mm thickness
Brace: 32*32*5 mm L-angle
Ladder: Nb25 round pipe
Thickness: 2mm

Weight: 65 kgs / set

Color : Blue

X-Bracings

Price: Rs---/kg

Minimum order quantity 100 kgs

Shape: H-frame

Size: 9 feet

Material: 32*32*5 mm L-angle

Weight: 10 kgs

Color : Blue
