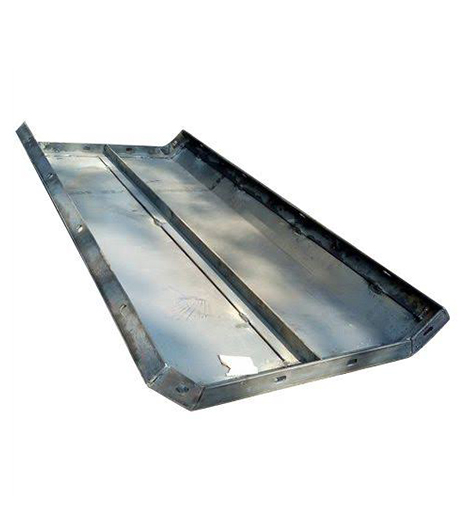

Haunch Shuttering Plate

Haunch Shuttering Plates are specialized formwork components used in construction projects to shape and support the haunches of beams, bridges, or similar structural elements. The haunch is the sloped or angled section of a beam or bridge that provides additional strength and support where the load is greatest, such as at the junction between beams and columns or abutments. Haunch shuttering plates ensure that these critical structural areas are formed correctly and maintain their shape while the concrete sets.

Key Features:

Precision Shaping for Haunch Areas: These plates are designed specifically to mold the sloped or curved areas of the haunch, ensuring the concrete forms the correct angle and shape for structural integrity.

High Load-Bearing Capacity: Made from durable steel or other heavy-duty materials, haunch shuttering plates are built to withstand the pressure of wet concrete during the pouring process.

Customizable for Various Designs: The plates can be custom-made to fit different haunch designs, including varying slopes, angles, and sizes, depending on the project's engineering requirements.

Smooth and Consistent Finish: Haunch shuttering plates help achieve a uniform, smooth finish on the haunch section, reducing the need for further surface treatment after the concrete has set.

Corrosion Resistance: Often galvanized or coated to protect against rust and corrosion, especially when used in outdoor or exposed environments such as bridges and overpasses.

Applications:

Bridge Construction: Widely used in the construction of bridge decks, particularly at the points where the bridge deck connects to columns or abutments. The haunch area supports additional loads, and these plates ensure the haunch is formed precisely.

Beam and Column Connections: In building construction, haunch shuttering plates are employed where beams meet columns, providing additional strength and support at these junctions.

Highway and Flyover Projects: Haunch shuttering plates are essential in large infrastructure projects such as highways, flyovers, and elevated roadways, where haunches provide added strength to support traffic loads.

Industrial Structures: Used in heavy industrial construction projects, such as factories or warehouses, where large beams with haunches are necessary to support heavy machinery or equipment.

Benefits:

Ensures Structural Integrity: Properly shaped haunches are crucial for distributing loads and ensuring the stability of beams and columns. Haunch shuttering plates help form these key structural elements accurately.

Cost-Effective: Reusable and durable, haunch shuttering plates can be used in multiple projects, reducing the need for new formwork with every construction job.

Improved Construction Efficiency: These plates allow for faster and more efficient construction of haunch areas, reducing labor costs and time on-site.

Enhanced Safety: Properly formed haunches ensure the overall safety of the structure by distributing weight effectively and reducing the risk of failure in critical load-bearing areas.
