Scaffolding System

A scaffolding system is a temporary structure used to support workers and materials during the construction, maintenance, or repair of buildings and other large structures. It provides access to high areas that are otherwise difficult to reach. There are several types of scaffolding systems, each designed to meet specific needs based on the nature of the project.

Here are some common types:

Supported Scaffolding: Most common type, supported by poles and frames that are erected from the ground up.

Suspended Scaffolding: Hung from the roof or an upper surface and can be raised or lowered as needed.

Rolling Scaffolding: Mounted on wheels or casters to move easily across surfaces.

Cantilever Scaffolding: Used when it's not possible to fix scaffolding to the ground, such as in narrow or obstructed areas.

Trestle Scaffolding: Typically used indoors, supported by tripods or ladders.

Cuplock Scaffolding

Price: Rs---/kg

Minimum Order Quantity: 100 kg

Application: Scaffolding

Vertical Size: 3 meters
2 meters
1 meter
0.5 meter
any customized size
Horizontal Size: 2 meters
1.5 meters
1 meter
any customized size

Stock: Any time Available.

Material: Round NB40 pipe

Thickness: 3.2 mm

Color: Blue.

Acro Span

Price: Rs---/kg

Minimum Order Quantity 10 no’s

Application: Construction

Weight: 40kg

Color: Blue Oxide

No. of I-bolts: 2 no’s

Size: 2*4 * 2*4 meters

Adjustable Size: 8 Feet – 14 Feet

Material: MS Sheet-2mmSheet, MS Rod-10mm

T-Angle: 40mm*5mm

Flat Path: 50mm*5mm

Adjustable Jack Prop

Price: Rs---/kg

Minimum Order Quantity 10 no’s

Adjustable: 7 feet-12 feet/ 10 feet-15 feet

Size: 2*2 m , 2*3 m

Nut Type: L & T nut

Color: Blue

Material: Outer prop-NB50/Round Pipe- 2.9 mm
Inner Prop-NB40/Round Pipe- 2.9mm

Weight: 18 kg

Stock: Any time available.

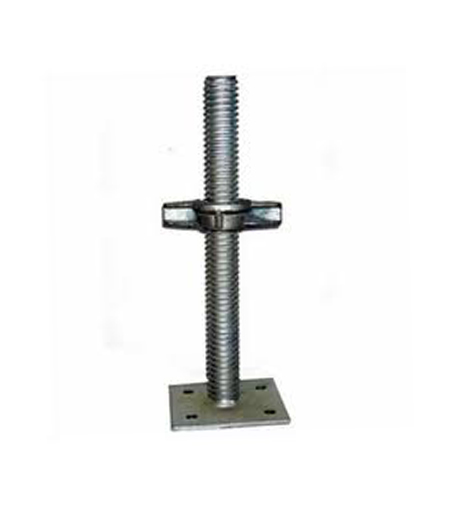

Base Jack

Price: Rs.---/kg

Minimum Order Quantity 10 no’s

Adjustable: yes

Base Plate: 150*150*6 mm

Length: 1 feet, 1.8 feet & 2 feet

Material: 38mm Round Rod

Application: Construction

Color: Blue

U-Jack

Price: Rs.---/kg

Minimum Order Quantity 10 no’s

Adjustable: Yes

Length: 1 feet, 1.8 feet & 2 feet

U-Head: 100*100*100*6 mm

Material: 38 mm Round rod

Stock: Any time available

Color: Blue

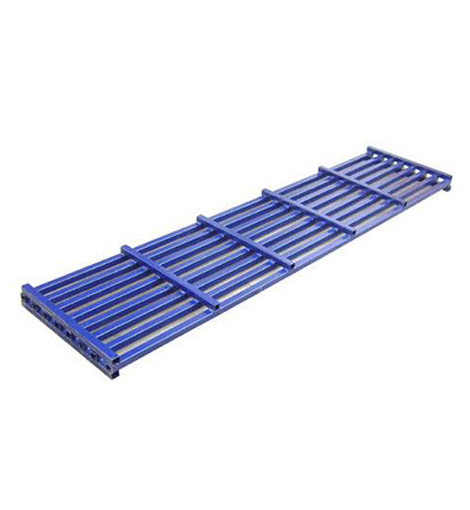

Scaffolding Jalli

Price: Rs.---/kg

Minimum order Quantity 10 no’s

Material: N25 square pipe, 2mm Thickness

Length: 8 feet, 9 feet & 10 feet

Width: 15 inches, 18 inches

Stock: Any time available

Color: Blue

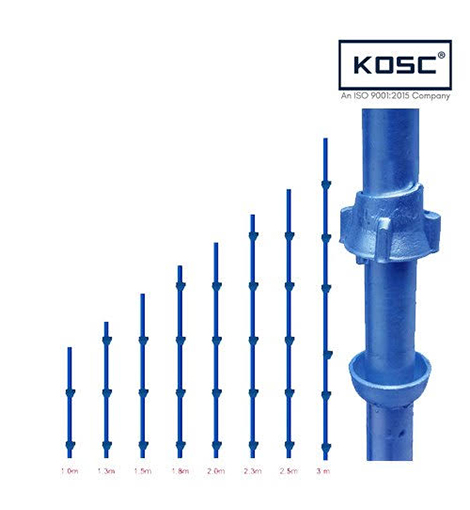

Cup-lock Vertical

Price: Rs.---/kg

Minimum order quantity 100 kgs

Size: 3 meters, 2 meters, 1 meter, 0.5 meter

Material: NB40 round pipe, 3.2 mm thickness

Lock Type: Top-Bottom

Color: Blue

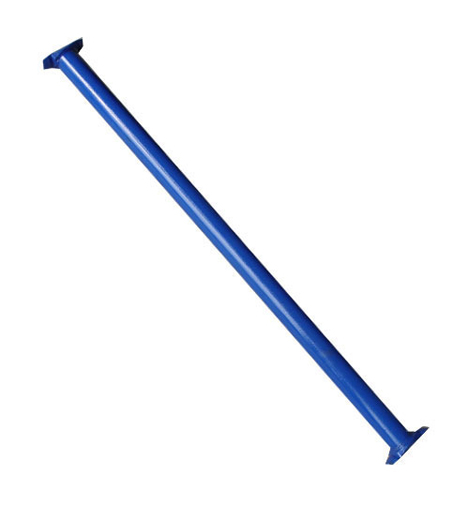

Cup-lock Horizontal Ledgers

Price: Rs.---/kg

Minimum order quantity 100 kgs

Size: 2 meters, 1.5 meters, 1 meter & 0.5 meter

Material: NB40 round pipe, 3.2 mm Thickness

Ledgor: Blade Type

Color: Blue

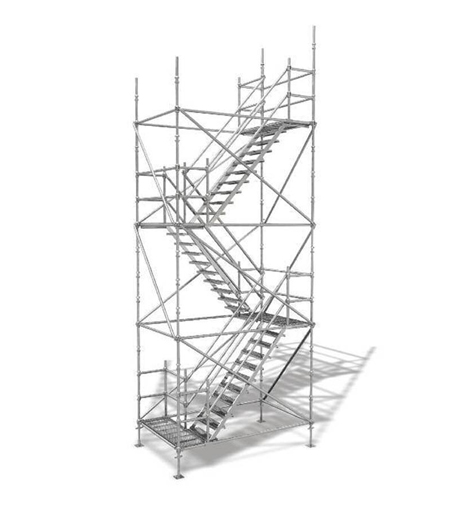

Cup-lock with Stair Case

Price: Rs.---/kg

Minimum order quantity 100 kgs

Material: NB40 round pipe, stair case made of angle

Platform: 450 mm*2 meter
